Description

The Universal Wing

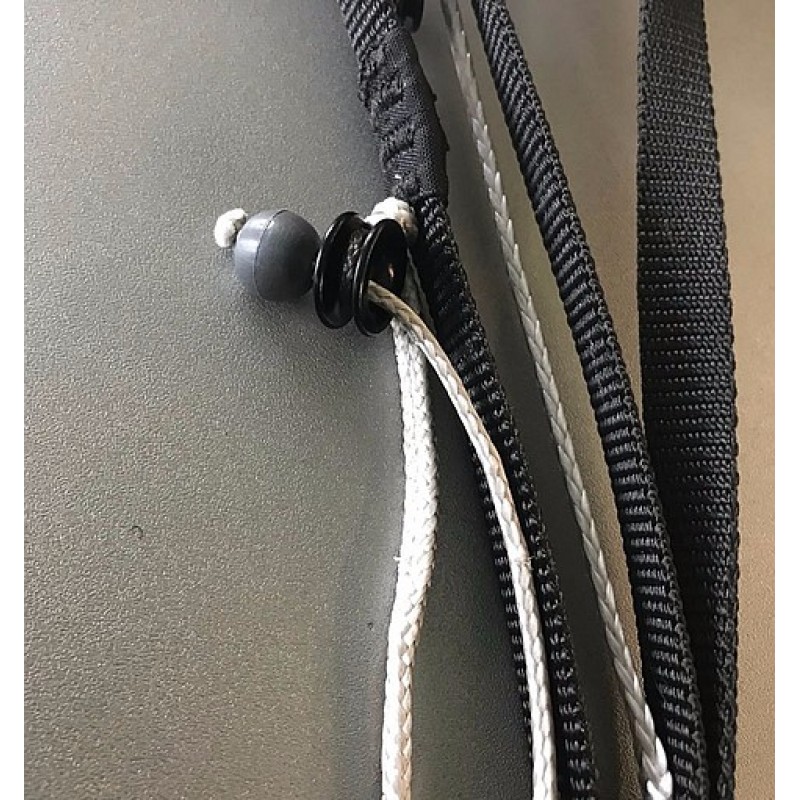

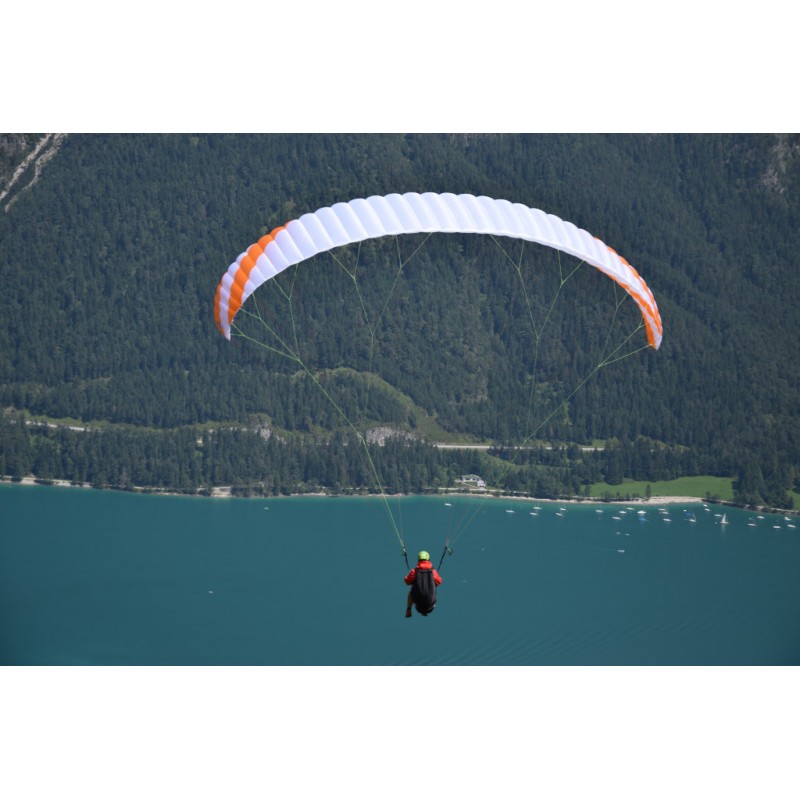

The VIOLA is an extremely versatile lightweight paraglider: 8 sizes covering a weight range from 50 to 145kg, from the certified miniwing up to an easy hike and fly wing for heavy pilots. The VIOLA 18 can be used as a family glider with a legal weight range from 50 up to 110kg. By using modern technology and new materials the weight per square meter was reduced even more. The risers are made from stable and robust TECHNORA. Choose softlinks or light metal maillon rapides. With the softlinks the small sizes of the VIOLA (incl. 20) have no pure metal parts at all! (The bigger sizes have a brake reef system with small metal rings.)

Viola Designers Notes

The weight reduction of the VIOLA over the SONATA is offering even better recovering after deflations and even less dynamic reactions in extreme manoeuvres. So it was possible to rise the max take off weight by 15kg. This has to be seen as an extended weight range, for pilots who want to fly a high loaded, small, light and very agile wing, offering extreme fun.

The very small VIOLAs are targetting to experienced alpine pilots looking for a very light, fast and good performing wing, that does not overreact and is behaving very trustworthy in every situation.

Over the full range of VIOLAs the demand is rising with the wing loading. A VIOLA 18 is a very easy and safe school wing loaded with 50kg, but as well a high level sports equipment for experienced pilots at 110kg.

Hannes Papesh

Viola Technical Data

	XXXXS	XXXS	XXS	XS	S	M	L	XL
Size	12	14	16	18	20	22	24	26
Number of Cells	40	40	40	40	40	40	40	40
Projected Span (m)	6.43	6.93	7.48	7.94	8.35	8.76	9.12	9.51
Projected Area (m²)	12.09	14.04	16.36	18.39	20.34	22.4	24.3	26.44
Projected Aspect Ratio	3.42	3.42	3.42	3.42	3.42	3.42	3.42	3.42
Flat Span (m)	8.15	8.78	9.47	10.05	10.57	11.1	11.56	12.05
Flat Area (m²)	14.08	16.36	19.04	21.43	23.71	26.1	28.32	30.81
Flat Aspect Ratio	4.72	4.72	4.72	4.72	4.72	4.72	4.72	4.72
Line Length (m)	4.97	5.35	5.78	6.13	6.45	6.77	7.05	7.35
Total Line Length (m)	176.9	190.7	205.9	218.3	229.6	240.8	250.9	261.7
Maximum Chord (m)	2.15	2.32	2.5	2.65	2.79	2.93	3.05	3.18
Minimum Chord (m)	0.51	0.55	0.6	0.63	0.66	0.7	0.73	0.76
Weight (kg)	2	2.2	2.5	2.78	2.99	3.25	3.5	3.75
Certified Weight Range (kg)	50-90	50-90	50-75	50-90	65-100	75-110	90-120	105-145
Certification (EN/LTF)	D	C	A	A	A	A	A	A
Certified Weight Range Extended (kg)			75-110	90-110	100-120
Certification (EN/LTF) (ext range)			C	B	B
Material	Porcher 32 / 27
Risers	RZ3(3), RZ4((3+1)
Riser Length (mm)	500	500	500	500	500	540	540	540
Speedway (mm)	150	150	150	150	150	150	175	175

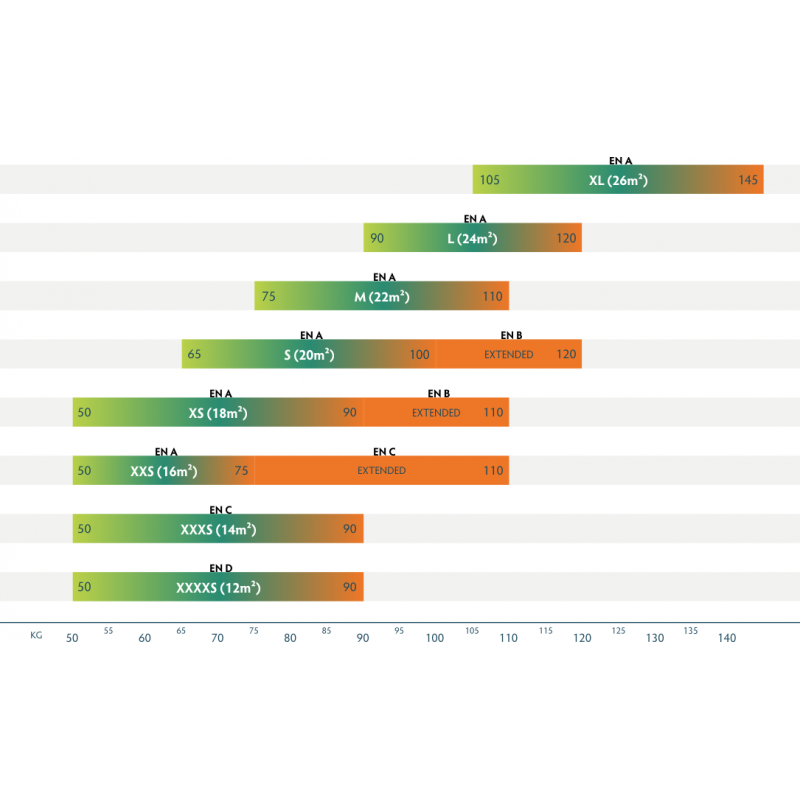

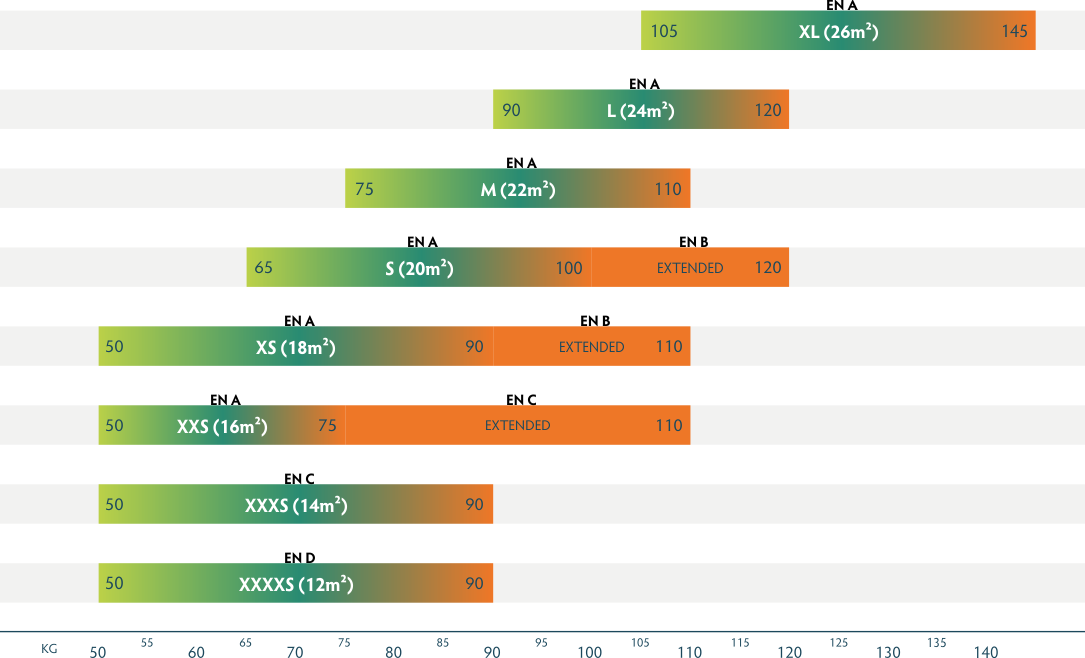

Viola Weight Ranges

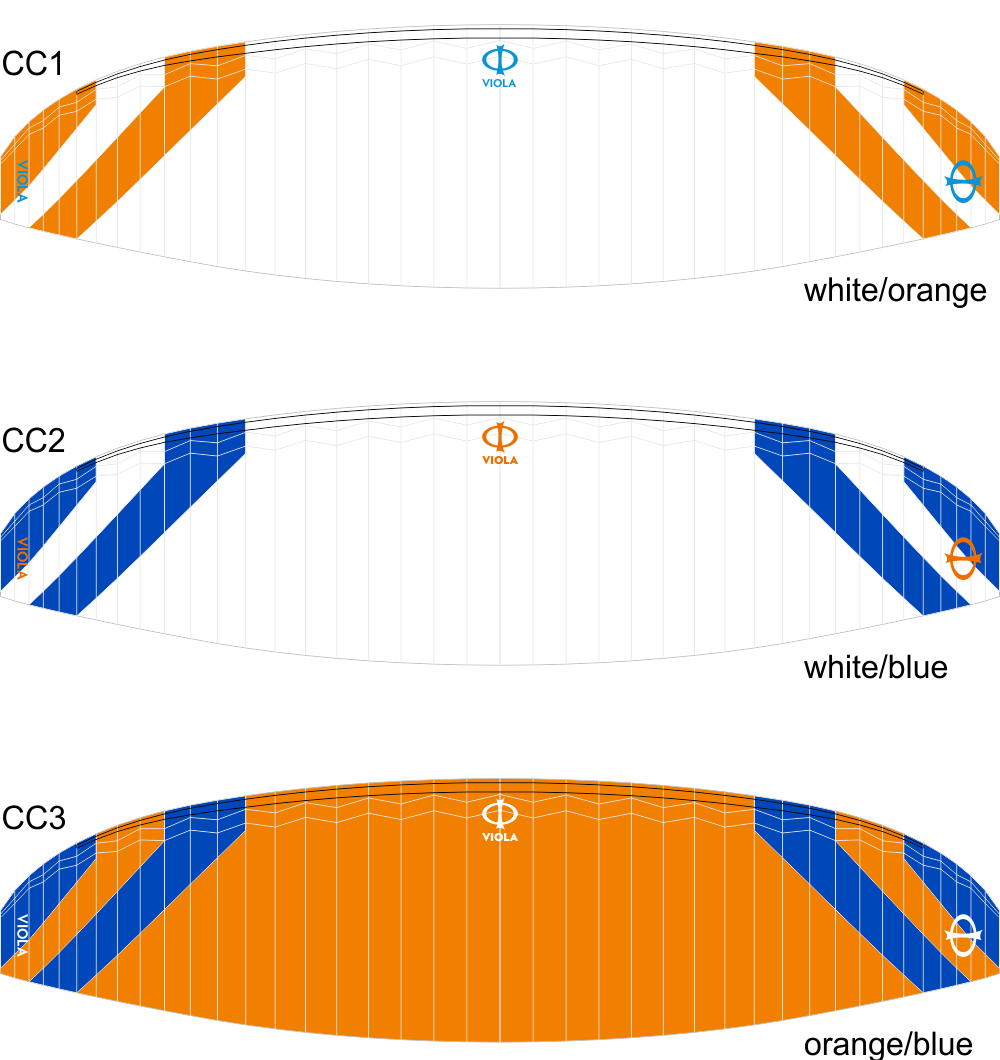

Viola Colours

The Secrets of Symphonia

The secret to develop extraordinary wings is the passion to fly.

We’re ourselves enthusiastic pilots, loving hike and fly adventures.

I have to admit: I built the VIOLA 18 for myself.

-and the VIOLA 12 for Mike…

Scope of delivery

Glider, compression belt, innerbag, backpack.
The PHI rucksack is designed to be reduced and light, but still robust and convenient to carry.
It can be packed very small, to minimize storage space in the harness.
