Description

Expanding Horizons

The TENOR is a Mid B wing which sets new standards in dynamic performance, passive safety and aerodynamic construction.The additional mini ribs in the leading edge double the cell number in the critical area of the aerofoil. Together with the optimised double zigzag 3D shaping the surface finish reaches a new level of perfection.Although the TENOR is a very robust wing (Dominico 30D/20D cloth and internal stitching of trailing edge mini ribs), the innovative internal construction reduces the weight effectively.This wing is very stable at speed and has plenty of safety when it’s getting rough: the TENOR is built to expand your horizons.

Tenor Designers Notes

The TENOR is based on the SYMPHONIA, combining a very safe concept with some additional features to improve performance and speed. The additional ribs in the leading edge are the step forward in form stability. The new airfoil is offering a good climbing performance, even the wing being smaller. The reduced size and higher wing loading is moving the polar towards speed performance. So the TENOR is designed to reach the horizon.

Hannes Papesh

Tenor Technical Data

	XS	S	M	L	XL
Size	17	19	21	23	25
Number of Cells	50/100	50/100	50/100	50/100	50/100
Projected Span (m)	8.00	8.41	8.81	9.21	9.61
Projected Area (m²)	17.45	19.25	21.15/td>	23.09	25.12
Projected Aspect Ratio	3.67	3.67	3.67	3.67	3.67
Flat Span (m)	10.29	10.81	11.33	11.84	12.35
Flat Area (m²)	20.6	22.74	24.98	27.27	29.67
Flat Aspect Ratio	5.14	5.14	5.14	5.14	5.14
Line Length (m)	6.13	6.44	6.75	7.06	7.36
Total Line Length (m)	226.6	238	249.5	260.7	271.9
Maximum Chord (m)	2.49	2.62	2.74	2.87	2.99
Minimum Chord (m)	0.59	0.62	0.65	0.68	0.71
Weight (kg)	3.2	4.4	4.7	5.0	5.4
Certified Weight Range (kg)	50-75	65-85	75-95	90-110	105-130
Certification (EN/LTF)	B	B	B	B	B
Ext. Weight Range Motor	75-130	85-130	95-170	110-170	130-170
Certification DGAC	Pending	Pending	Pending	Pending	Pending
Material	Dominico 30D, 20D, 30D
Risers	RZ1 (3+1)
Riser Length (mm)	500	500	540	540	540
Speedway (mm)	130	150	175	175	175

Tenor Weight Ranges

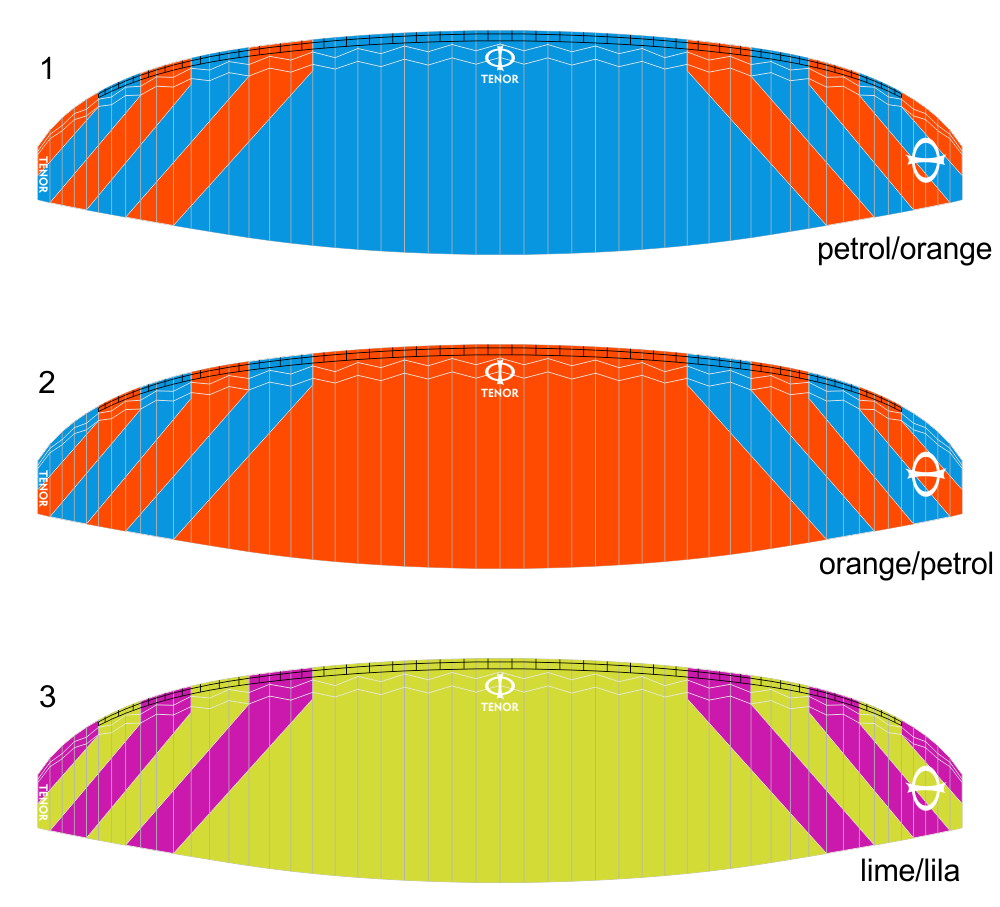

Tenor Serial Colours

Tenor Secrets

We played a lot with the rigging system to improve the angle of attack being optimal reduced over the wingspan by stepping into the speed system. Another main point was the high form stability in turbulence or when the brakes are pulled a little.

Scope of delivery

Glider, compression belt, innerbag, backpack.
The PHI rucksack is designed to be reduced and light, but still robust and convenient to carry.
It can be packed very small, to minimize storage space in the harness.
