Description

Lightness at its best

The TENOR light uses modern light construction insights to combine high aerodynamic efficiency with exceptional form stability and incredibly low weight. The performance and speed enables ambitious Hike & Fly adventures that can be relaxing at the same time. The risers are made from stable and robust TECHNORA. Choose softlinks or light metal maillons.
Such lightweight performance and safety has never been seen before!
That’s why the TENOR light got a best seller!

Tenor Light Designers Notes

The weight reduction of the TENOR light over the normal TENOR is offering even better recovering after deflations and even less dynamic reactions in extreme manoeuvres. So it was possible to rise the max take off weight by 10kg. This has to be seen as an extended weight range, for pilots who want to fly a high loaded, small, light and very agile wing, offering extreme fun and performance at speed.

Hannes Papesh

Tenor Light Technical Data

	XS	S	M	L	XL
Size	17	19	21	23	25
Number of Cells	50/100	50/100	50/100	50/100	50/100
Projected Span (m)	8.00	8.41	8.81	9.21	9.61
Projected Area (m²)	17.45	19.25	21.15	23.09	25.12
Projected Aspect Ratio	3.67	3.67	3.67	3.67	3.67
Flat Span (m)	10.29	10.81	11.33	11.84	12.35
Flat Area (m²)	20.6	22.74	24.98	27.27	29.67
Flat Aspect Ratio	5.14	5.14	5.14	5.14	5.14
Line Length (m)	6.13	6.44	6.75	7.06	7.36
Total Line Length (m)	226.6	238	249.5	260.7	271.9
Maximum Chord (m)	2.49	2.62	2.74	2.87	2.99
Minimum Chord (m)	0.59	0.62	0.65	0.68	0.71
Weight (kg)	2.95	3.2	3.4	3.64	3.85
Standard Weight Range (kg)	50-75	65-85	75-95	90-110	105-130
Extended Weight Range (kg)		65-95	95-105	110-120	130-140
Certified Weight Range (kg)	50-75	65-95	75-105	90-120	105-140
Certification (EN/LTF)	B	B	B	B	B
Material	Porcher Skytex 32 / 27
Risers	RZ3 (3) RZ4 (3+1)
Riser Length (mm)	500	500	540	540	540
Speedway (mm)	130	150	175	175	175

Tenor Light Weight Ranges

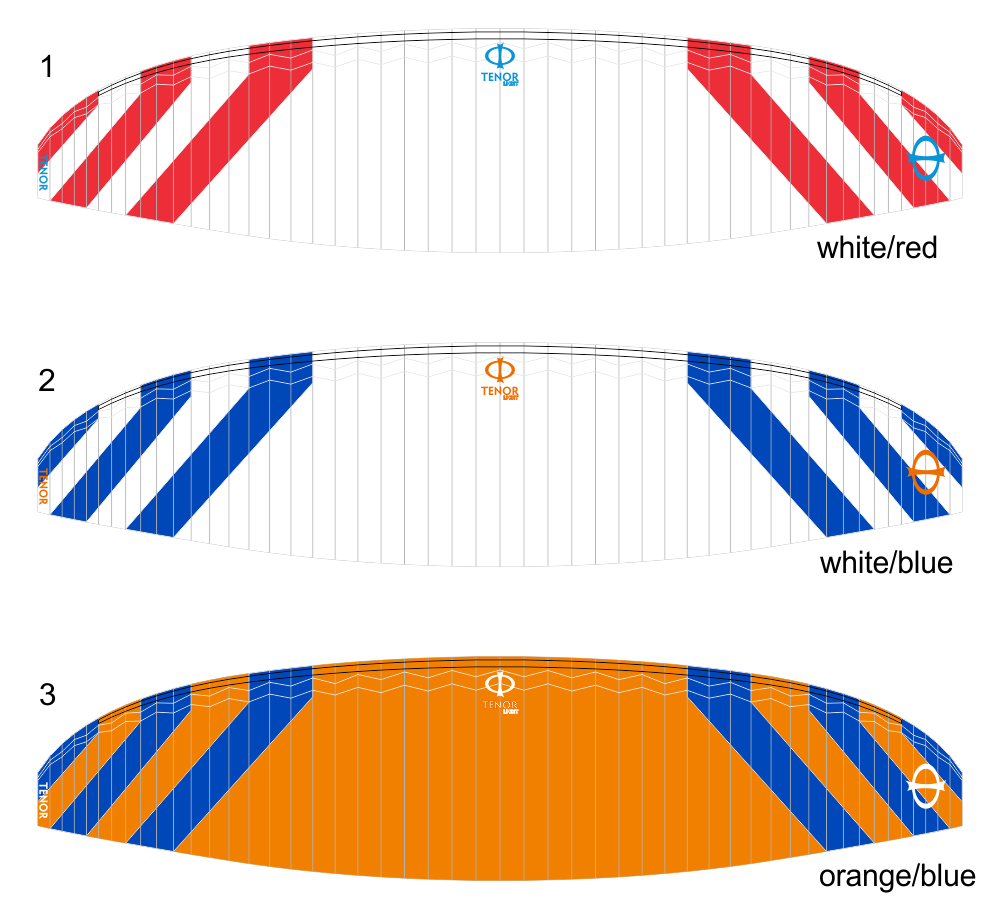

Tenor Light Serial Colours

Tenor Light Secrets

We played a lot with the rigging system to improve the angle of attach being optimal reduced over the wingspan by stepping into the speed system. Another main point was the high form stability in turbulence or when the brakes are pulled a little.

Tenor Light Testing

Mike and Benni are known to do very hard testings. This is paying off for the pilots when the conditions are getting rough.

Scope of delivery

Glider, compression belt, innerbag, backpack.
The PHI rucksack is designed to be reduced and light, but still robust and convenient to carry.
It can be packed very small, to minimize storage space in the harness.
